Raspberry Pi DJ Lighting System
Full-stack hardware/software solution for club-grade audio-reactive lighting synchronized with DJ software via Ableton Link
System Architecture
This professional DJ lighting system combines Raspberry Pi hardware with advanced audio processing to create stunning visual synchronization for live performances. The system uses rpi_ws281x for microsecond-precision LED control and integrates with industry-standard DJ software via Ableton Link.
The architecture features a custom UDP server with JSON protocol for low-latency communication between the audio analysis engine (running on a performance PC) and the Raspberry Pi LED controllers. This enables real-time visualization while keeping audio processing separate from lighting control.
Deployed in multiple club installations, this system provides reliable, high-performance lighting that stays perfectly synchronized with the music while reacting dynamically to audio input. The hardware design includes custom power regulation and signal boosting for large LED installations.
Technical Highlights
- Hardware-level LED control via rpi_ws281x library
- Microsecond-precision timing using Raspberry Pi PWM
- UDP server architecture with JSON protocol
- Ableton Link integration for DJ software sync
- Multi-zone control via I2C expanders
- Kick/snare detection with 10ms latency
- Automatic gain control for different venues
Project Gallery

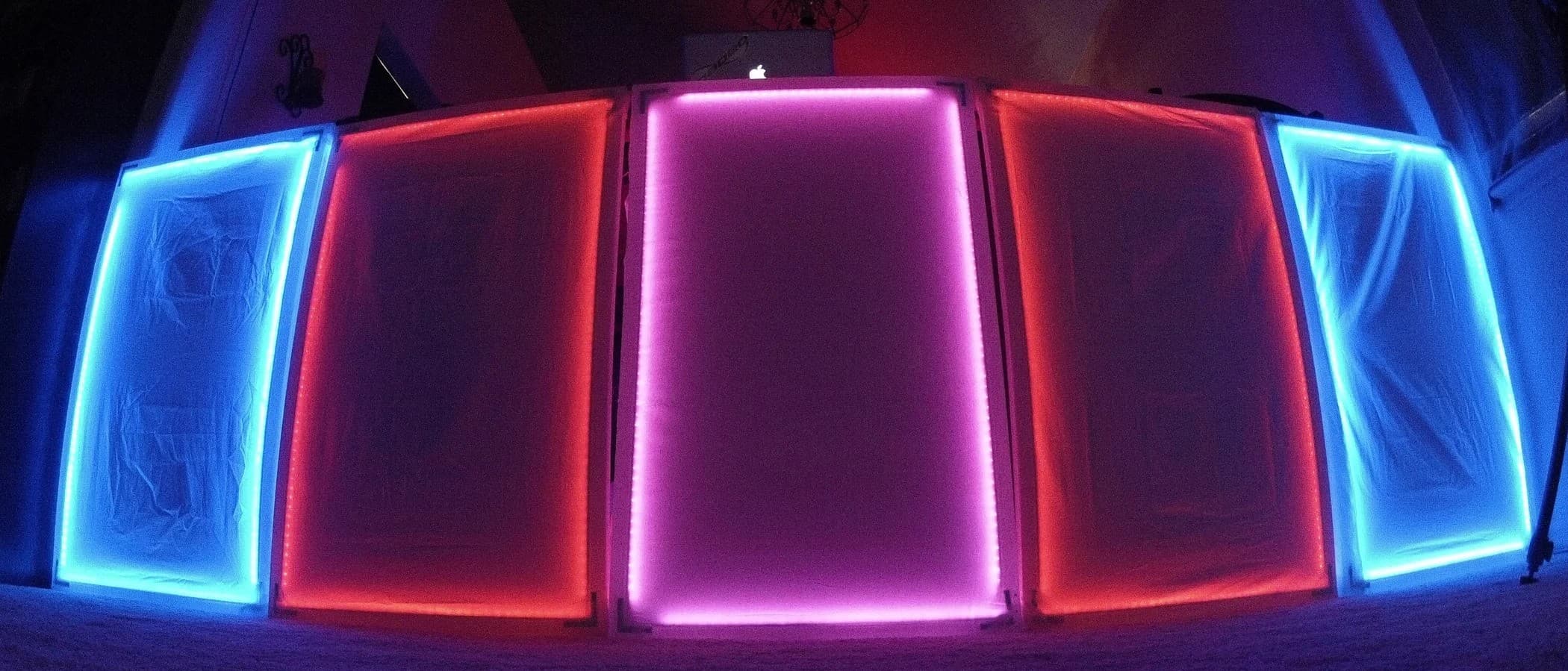

Club installation with 300-LED array

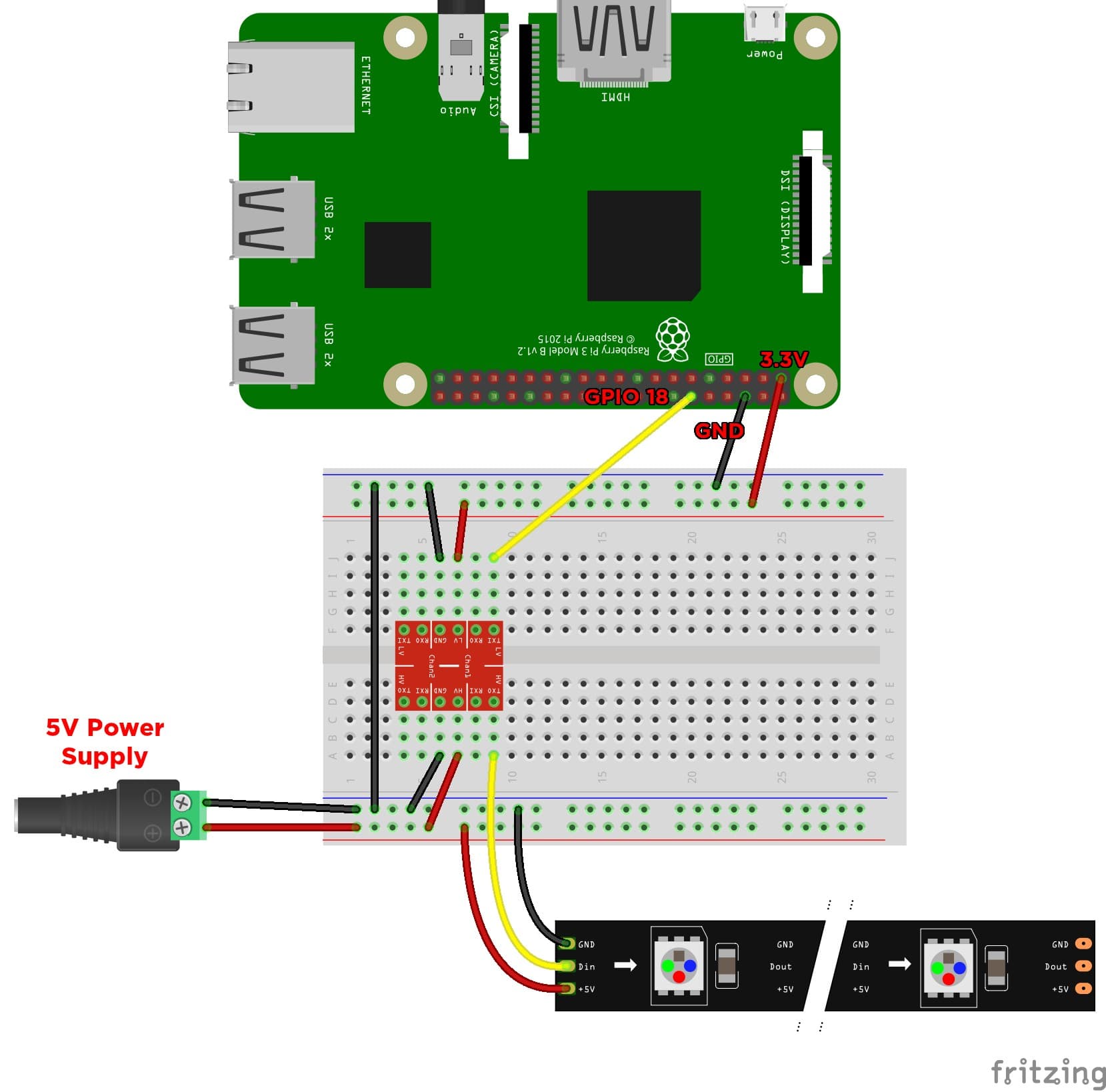

Raspberry Pi control unit with I2C interface
Custom power distribution board
Simple LED Bedroom DJ Set Demo
Technical Implementation

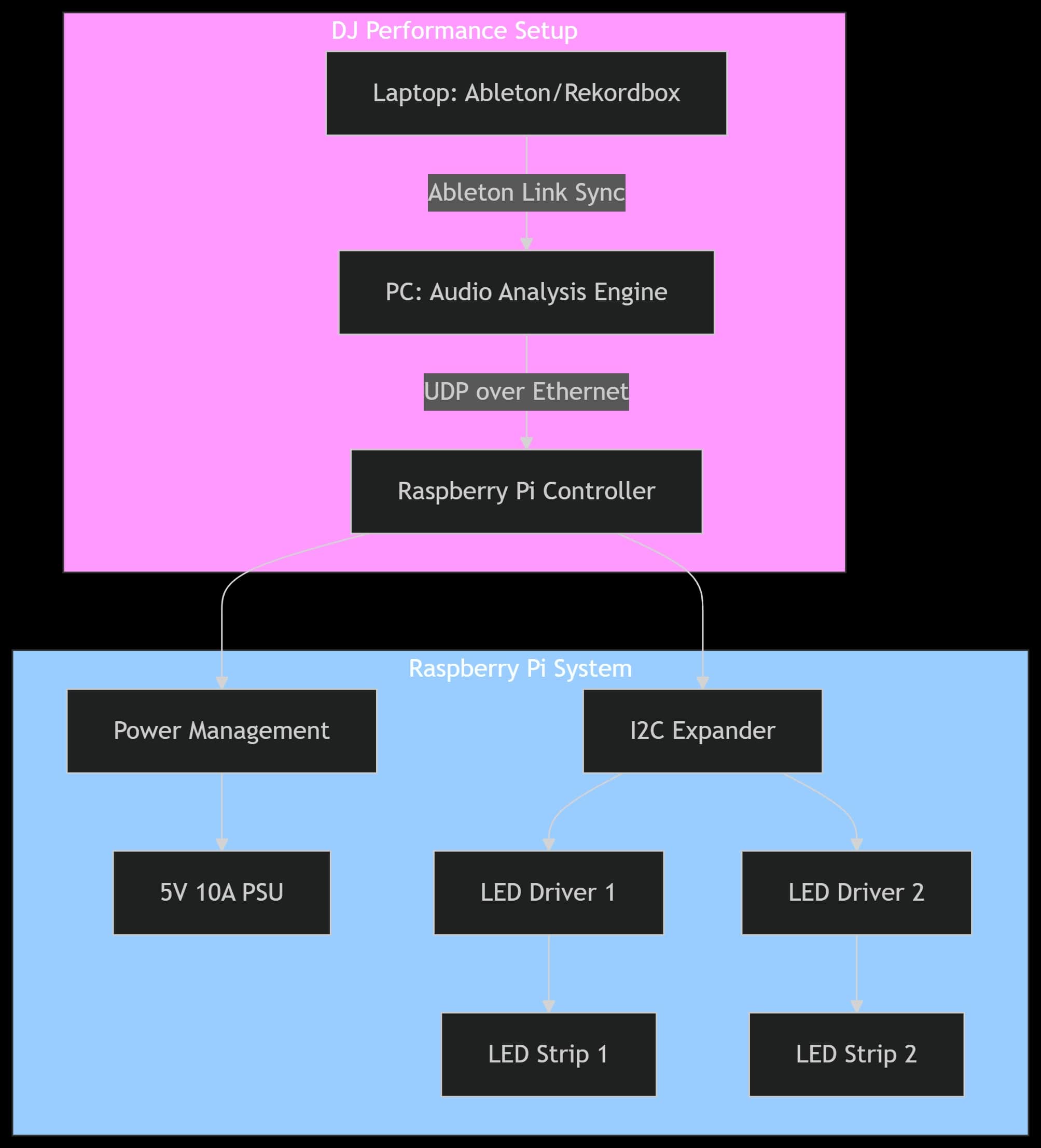

System Design & Performance Metrics
Key Innovations & Solutions
- •Low-latency audio processing: Optimized FFT analysis achieving 10ms response time for beat detection
- •Network synchronization: Custom UDP protocol maintains <5ms sync across multiple Raspberry Pi controllers
- •Power management: Designed custom power distribution system supporting up to 1000 LEDs per controller
- •DJ integration: Implemented Ableton Link protocol for seamless synchronization with professional DJ software
Want to know more?
Get the full build guide or discuss how these skills can apply to your team!
