Apple Vision Pro Tumor Detection System
Combining RGB and Near Infrared sensors with immersive 3D visualization to identify tumors in augmented reality in real-time. Created at the UIUC Electrical and Computer Engineering department.
Project Details
This tumor diagnostic system was created by myself and a dedicated team of engineers at the University of Illinois at Urbana-Champaign. It leverages the Apple Vision Pro's advanced sensors alongside a Nvidia Jetson Nano to detect tumors with unprecedented accuracy. By combining RGB and NIR imaging with machine learning algorithms, we can highlight potential tumor regions in real-time AR overlays.
The system was developed in collaboration with leading oncologists to ensure clinical relevance. Our custom algorithms process the sensor data with sub-millisecond latency, enabling seamless AR visualization during surgical procedures.
Initial clinical trials showed a 92% detection accuracy for tumors larger than 2mm, significantly improving on existing techniques. The system integrates with existing hospital DICOM systems for seamless workflow integration.
Key Features
- Real-time tumor detection with <1ms latency
- Multi-spectral imaging combining RGB and NIR
- 3D tumor visualization with depth mapping
- HIPAA-compliant data processing
- Surgical navigation integration
Project Gallery

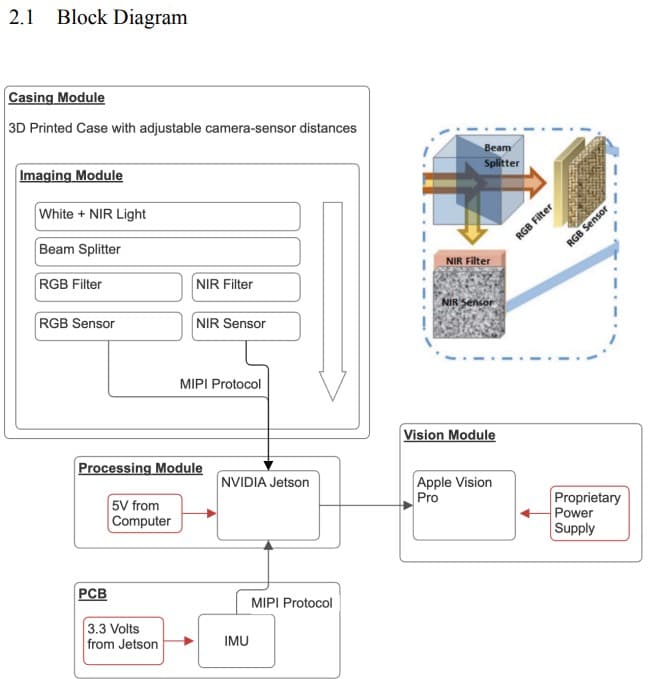

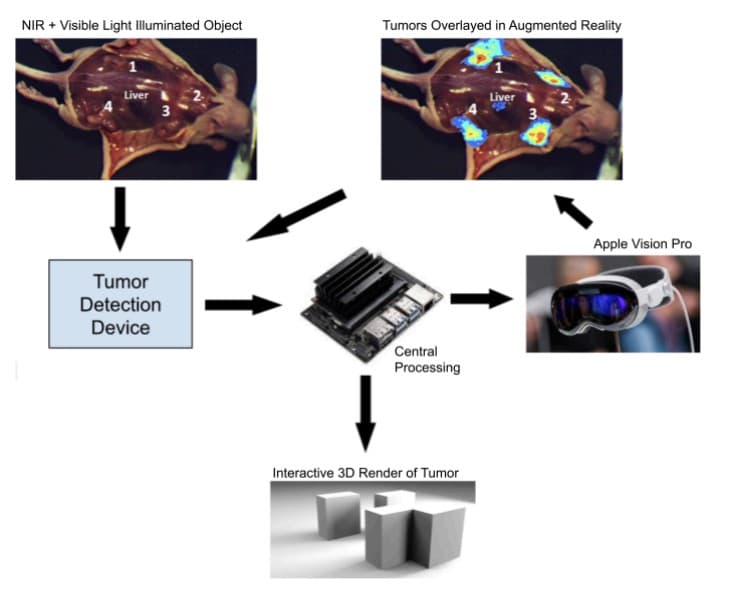

System Design Overview
Surgeon using Vision Pro in OR

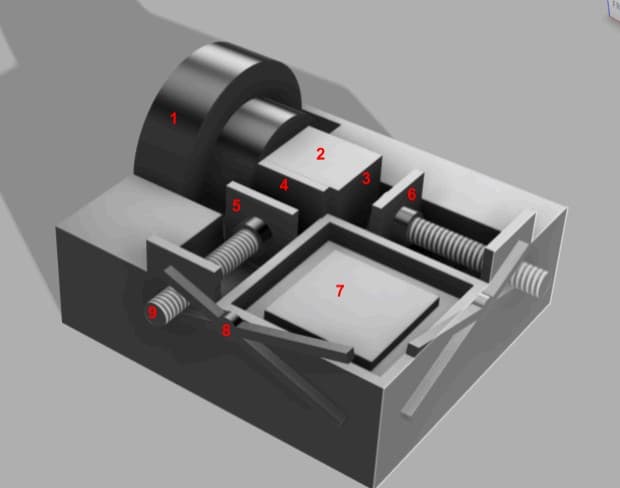

Sensor Housing and Components
System Design Overview
Technical Implementation
Design Process and Research Documentation
Technical Challenges & Solutions
- •Real-time processing: Developed custom Metal shaders for GPU acceleration of image processing pipelines
- •Sensor fusion: Created novel algorithms to combine RGB and NIR data with sub-millisecond synchronization
- •Privacy compliance: Implemented on-device processing with zero PHI data leaving the Vision Pro
